Description
Product introduction of small pellet feed machine：
Our company independently developed a new energy-saving device, the Small-Scale Granule Feeder, with cutting-edge technology surpassing global standards. Thanks to relentless efforts by our R&D team and technical experts, it achieves dry input and output, molding perfect granules in one pass.
Our lineup at XueZao Machinery includes a compact, aesthetically pleasing Small-Scale Household Granule Feeder with a maximum output of 800 kilograms per hour. Designed with a flat die and movable bottom roller, it ensures convenience and adaptability to different work environments. Plus, it features an emergency stop button for immediate power cut-off in case of accidents, prioritizing safety.

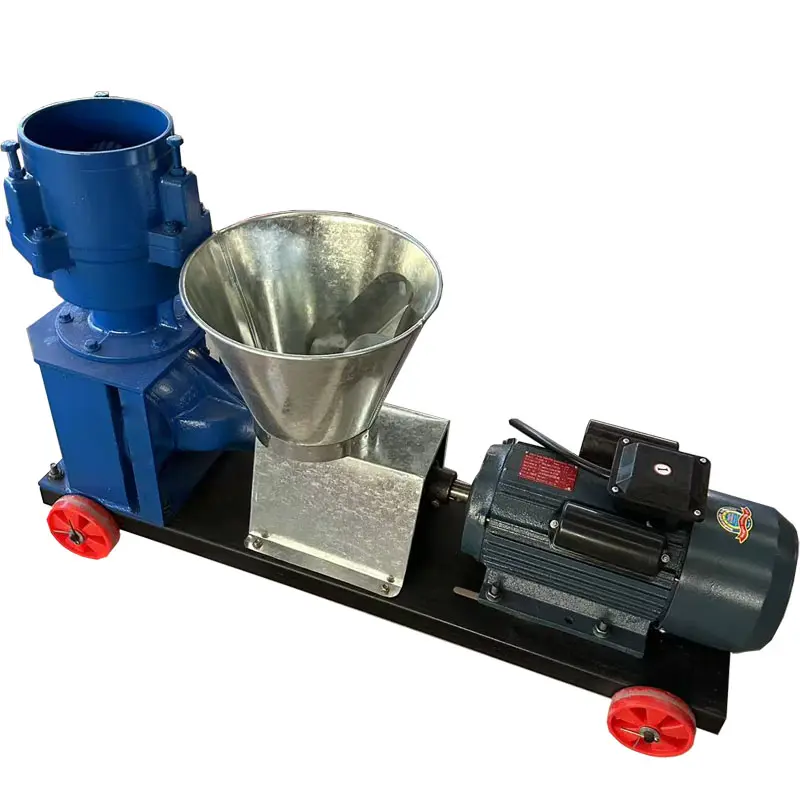

Pictures of small feed pellet machines are as follows:
Small pellet feed machine model parameters
| Model | Capacity kg/h | Roller Qty | Powe rkw | Size(mm) | Weight |
|---|---|---|---|---|---|
| XZ150 | 80-100kg | 2 | 4kw | 890*370*710mm | 76/90kg |
| XZ160 | 120-180kg | 3 | 4kw | 930*400*810mm | 99/115kg |
| XZ210 | 200-300kg | 3 | 75kw | 1220*530*850mm | 204/236kg |
| XZ230 | 300-400kg | 3 | 11kw | 1180*520*1020mm | 268/285kg |
| XZ260 | 400-600kg | 3 | 15kw | 1270*530*1030mm | 340/385kg |
| XZ300 | 800-1000kg | 4 | 22kw | 1300*800*1360mm | 400/420kg |
Small pellet feed machine production line
In practical production, small-scale granule feed processing equipment is often integrated into a compact feed pelletizing unit. Commonly employed complementary devices include feed crushers, mixers, screw feeders, and cooling drum separators. Manufacturers of small-scale feed pelletizers suggest that these auxiliary tools aren’t mandatory for simultaneous operation. Instead, they advise selecting equipment according to specific needs for optimal utilization. Integrating these devices into a cohesive small-scale feed pelletizing unit can significantly enhance efficiency and output while ensuring tailored functionality for individual production requirements.
Working principle of pellet feed machine
Our small-scale pelletizing machinery comprises a flat die and components like the power unit, gearbox, transmission shaft, die, roller, feed hopper, cutter, and discharge chute. The flat die equipped in this feeder is crafted based on extensive experimentation with various materials, ensuring optimal performance for most feedstock types. This tailored design maximizes efficiency, resulting in superior outcomes for a wide range of raw materials processed through the small-scale granule feeder. This granulator’s configuration is meticulously engineered to ensure top-notch performance, attaining optimal results across various feedstock compositions. The precision of its flat die, crafted from data gleaned through extensive trials with diverse materials, guarantees superior efficacy for standard raw materials.
The granule feeder operates with an electric motor as its main drive shaft, enabling a continuous cycle. This small-scale feeder employs gears to frictionally drive the die and roller, generating temperatures up to 80°C due to friction between them.
As raw materials undergo high temperatures and pressure between the roller and die, they pass through the die’s holes, resulting in high-quality formed granules that roll out through the discharge outlet. This process leverages the frictional heat generated (between the die and roller) to achieve optimal pellet formation. The feeder’s motor powers the main shaft, ensuring a continuous operational cycle. The gear mechanism drives the die and roller, creating friction that can reach temperatures of up to 80°C between the two components. With the application of high temperature and pressure, raw materials pass through the die’s perforations, shaping into premium-grade granules that smoothly exit through the discharge opening.
What about a small pellet feed machine?
1. The compact structure and appealing design define the Small-Scale Granule Feed Processing Equipment. It boasts high output, low power consumption, user-friendly operation, and reliable performance.
2. The evenly distributed roller configuration ensures smooth operation while expanding the compression area, thus enhancing production efficiency significantly.
3. Incorporating a screw center pressure adjustment structure, it adapts the die clearance to various materials, ensuring consistent compression results.
4. Equipped with observation doors, the small granule machine facilitates easy maintenance and inspection at any time.
5. Our manufacturer adheres strictly to standardized production and technical management, ensuring uniformity and interchangeability across all machines and components, providing customers peace of mind in spare part selections.
6. The Small-Scale Granule Feed Processing Equipment features an optimized die hole structure for feed processing, offering the best compression ratios for common raw materials. Users can select different apertures and compression ratios to meet specific needs for improved technical and economic benefits. This flexibility enhances overall efficiency and performance.
What raw materials can be pressed by a small pellet feed machine?
Henan Xuezao Machinery Equipment Co., Ltd. produced Small-Scale Granule Feed Processing Machine offers die plates with apertures ranging from 2.5 to 10mm. The pellets produced achieve a density of 1.1*103kg/m3. Adjusting the cutter height enables flexible length control of the produced pellets, meeting European standards (European standard pellet length is 1-5 times the pellet diameter).
Small pellet feed machine
The versatility of this small feed pelletizer extends to various common raw materials:
1. Feed pelletizing caters to rural specialized farms, small-scale breeding grounds, and rabbitries.
2. Coarse fiber pelletizing includes materials like wood shavings, rice husks, cotton stalks, cottonseed hulls, various crop straws, household waste, factory discards, and materials with low bonding rates or difficulty in forming.
Our Small-Scale Feed Processing Equipment accommodates a wide range of materials, ensuring adaptability to diverse applications.
Xuezao Machinery, a brand manufacturer in the pellet machine industry, is trustworthy!
Henan Xuezao Machinery is committed to developing and manufacturing pellet machines. With state-of-the-art processing equipment, substantial technical expertise, and stringent management systems, we ensure ample stock of standard products to promptly meet your procurement needs. Partnering with long-term logistics allies and benefiting from a prime geographic location with convenient transportation, we ensure swift delivery of your feed processing equipment.
1. Quality Assurance:
Our products hold ISO9001 International Quality Assurance System and EU CE Certification. Rigorous factory trials guarantee that their performance metrics meet or surpass both domestic and international standards.
2. Comprehensive Services:
– We offer solution designs, equipment acceptance, and installation, meeting diverse customer procurement requirements.
– Our provision of pellet machine components like die plates and compression rollers ensures sustained support.
– Enjoy a one-year warranty, lifetime maintenance, and a 24-hour service hotline at +86 15515685805.
Small pellet feed machine
Since our establishment, Xuezao pellet machines have been exported to over 100 countries and regions, known for their quality, affordability, and excellence, making them an optimal choice for you!

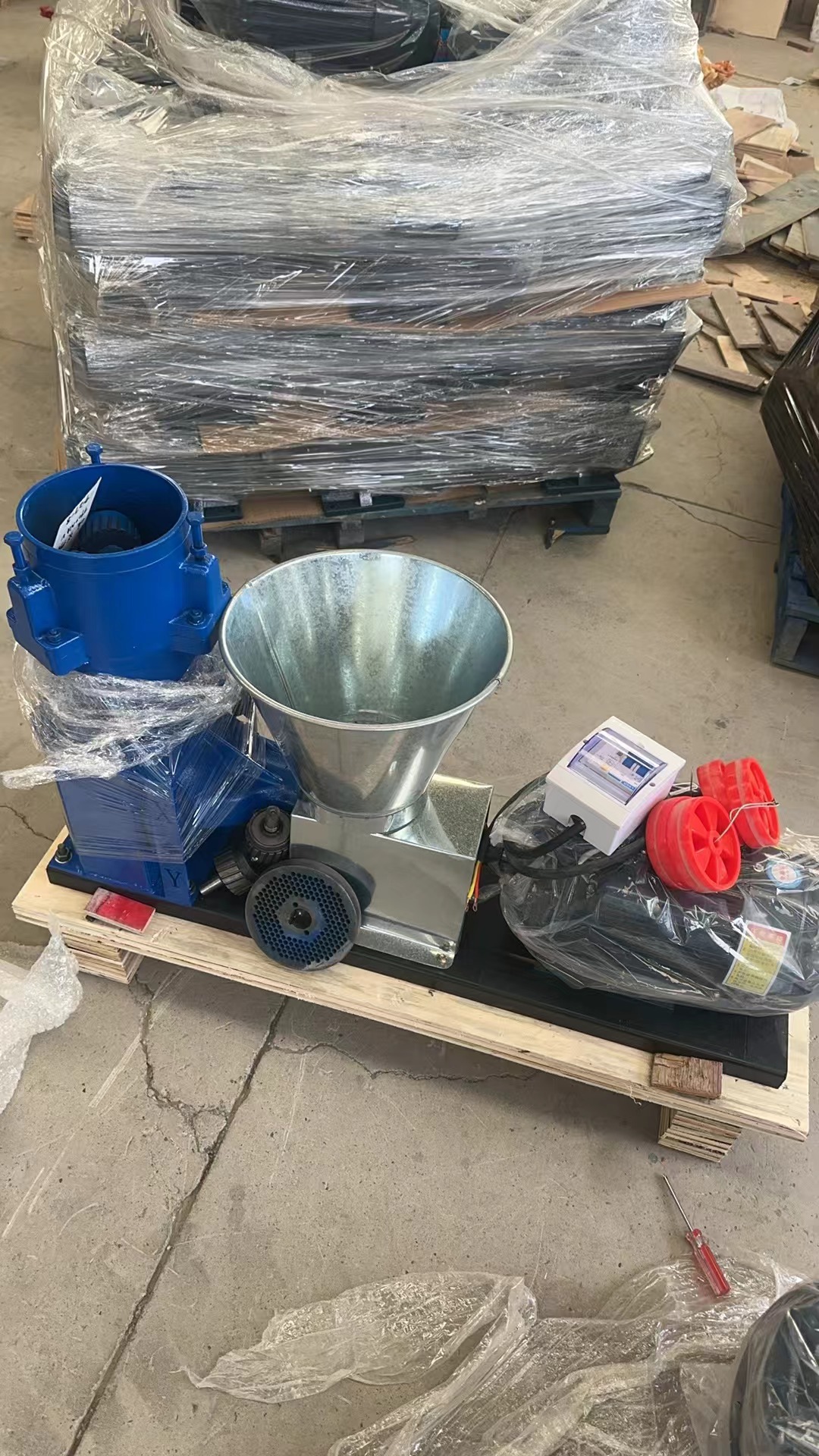

Pellet Machine Packaging and Shipping:Small pellet feed machine.
With meticulous attention to detail, our focus on every aspect includes packaging and transportation. Ensuring equipment is securely packaged after inspection, we use plastic film internally and export-standard fumigation-free wooden packaging externally to prevent damage and moisture, ensuring machines reach customers intact.
For poultry and livestock, using pellet feed aids in enhanced nutrient absorption. Its sturdy texture suits gnawing animal behaviors, improving palatability and boosting nutritional absorption rates by 300%. Non-toxic and sterile, it facilitates long-term storage and transport.
Small pellet feed machine
Small pellet feed machine
Wondering about the price of small-scale pellet feed machines? Considering the increasing prevalence of using pellet feed in breeding, the low cost and high returns of pellet feed machines make them an optimal choice. So, if you’re deliberating in breeding and seeking higher returns, choosing our pellet feed machine will bring unexpected surprises!
